Lab 316 Pressure Reduce Panel , Gas Distribution Panel With Purge Function

Ask Lasest Price
Brand Name :	AFK
Model Number :	WL300
Price :	Negotiable
Certification :	CE

Add to Cart

Product Details
Company Profile

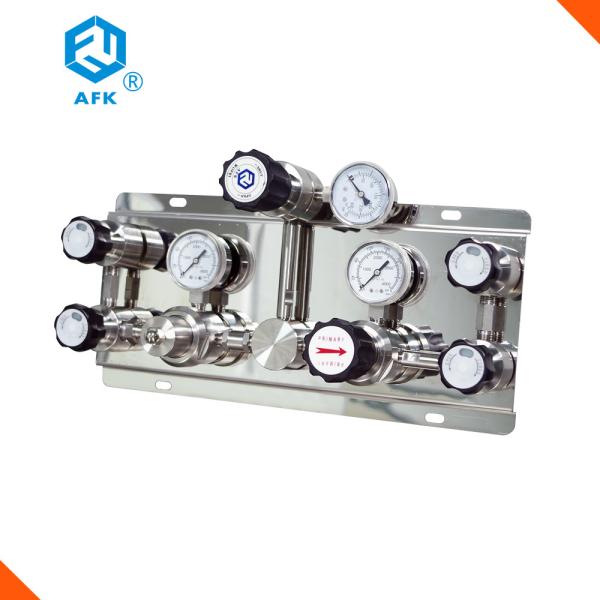

Lab 316 Pressure Reduce Panel , Gas Distribution Panel With Purge Function

Product Description

WL300 Series Semi-automatic Changeover Device

It is suitable for high pressure gas cylinders and pressure relief gas supply on both sides, through the automatic changeover to realize continuous gas supply, with the function of purging.
The maximum input pressure of 20.7 Mpa (3000 psi), corrosion, clean workshop assembly test, suitable for laboratory, high purity gas such as gas analysis.

High pressure pressure regulator with one inlet pressure gauge.

Body ports: 1/4NPT F

Body ports: 3 ports

Type: can't be adjustable

Body material: nickled plated brass and ss316L are available.

Lab 316 Pressure Reduce Panel , Gas Distribution Panel With Purge Function

High pressure regulator with one inlet pressure gauge.

Body ports: 1/4" NPT F

Body ports: 3ports

Type: can be adjustable

Body material: Nickled plated brass and ss316L are available.

Technical Parameters

Specification
Body		SS316L, brass, nickel plated brass ( Weigh :0.9kg)
Cover		SS316L, brass, nickel plated brass
Diaphragm		SS316L
Stainer		SS316L(10um)
Valve Seat		PCTFE,PTFE,Vespel
Spring		SS316L
Plunger Valve Core		SS316L

Material
Maximun Input Pressure		500,3000 psig
Outlet pressure range		0~25, 0~50, 0~100, 0~250, 0~500 psig
Safety Testing Pressure		1.5 times of maximum input pressure
Working Temperature		-40°F~ +165°F (-40°C~ +74°C )
Leakage Rate		2×10-8 atm cc/sec He
CV Value		0.08

ORDERING INFORMATION
WL3	1	1	1	S	H	1	1	-N2
Series	Function Options	Outlet Connection	Inlet Connection	Body Material	Input Pressure	Outlet Pressure	Gauge	Gas Option
WL300 Series Semi-automatic Changeover Device	1.With emptying, purging distribution function	1:1/4”NPT(F)	1:1/4″Weldmg	S:stainless	H:3000psi	1:25psi	1:MPa	Blank: None
	2.Wrthout Emptying, purging distribution function	2:1/4”Tube fitting	2:1/4”NPT(M)	steel	M:2200psi	2:50psi	2:Bar/psi	N2:nitrogen
	3.Emptying. purging distnbuUon+pressure sensor	3:3/8”NPT(F)	3:3/8”Melding	C:nickel plated	L:1000psi	3:100psi	3:psi/KPa	O2:oxygen
	4.With pressure sensor	4:3/8”Tube fitting	4:3/8”NPT(M)	brass	O: Other	4:150psi	4:Other	H2:hydrogen
	5:Other	5:1/2”NPT(F)	5:1/2”Melding			5:250psi		C2H2:acetylene
		6:1/2”Tube fitting	6:1/2”NPT(M)			6:Other		CH4:methane
		7:Other	7:1/4”Tube fitting					Ar:argon
			8:3/8″Tube fitting					He:helium
			9:1/2″Tube fitting					Air:air
			10:Other

Please provide the following parameters in your inquiry as many as possible:
1. Inlet actual working pressure
2. Outlet actual working pressure
3. Inlet conenction and size
4. Outlet conenction and size
5. Material: brass, nickel plated brass, stainless steel
6. If you have special flow rate requirements and a panel, please indicate it.
7. Quantity
Notes: The ranges of pressure gauges, inlet connector, outlet connector can be equiped according your requirements. Please write the above descriptions as possible as you can. If you can not confirmed it at the moment, just send us inquiry, we also can recommend our regular model for you.

FAQ

Q1. What products can you provide?

Re: High pressure regulator, cylinder gas regulator, ball valve, needle valve, compression fittings(connections).

Q2. Can you make the products based on our requests, such as connection, thread, pressure and so on?

Re: Yes, We have experienced techincal team and can design and produce the products according to your requirements. Take a pressure regualtor for example, we can set the range of pressure gauge according actual working pressure, if the regulator is connected to a gas cylinder, we can add an adaptor such as CGA320 or CGA580 to connect the regulator with the cylinder valve.

Q3. What about the quality and price?

Re: Quality is very good. Price is not low but pretty reasonable at this quality level.

Q4. Can you provide samples to test? For free?

Re: Of course, you can take several to test firstly. Your side shall bear the cost due to its high value.

Q5. Can you operate OEM orders?

Re: Yes, OEM is supported though we also have our own brand named AFK.

Q6. What payment methods for chose?

Re: For small order, 100% Paypal, Western Union and T/T in advance. For bulk purchase, 30%T/T, Western Union, L/C as deposit, and 70% balance paid before shipment.

Q7. How about the lead time?

Re: Usually, delivery time is 5-7 working days for sample, 10-15 working days for mass production.

Q8. How will you ship the goods?

Re: For small amount, international express is used mostly such as DHL, FedEx, UPS, TNT. For large amount, by air or by sea. Besides, you also can have your own forwarder pick up the goods and arrange the shipment.
