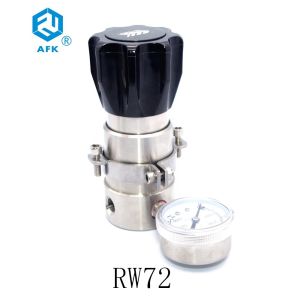

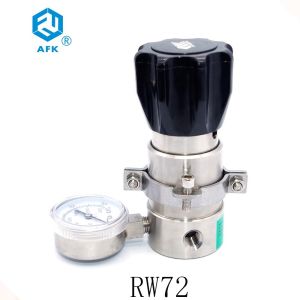

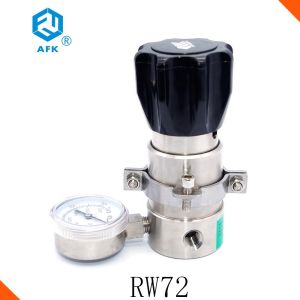

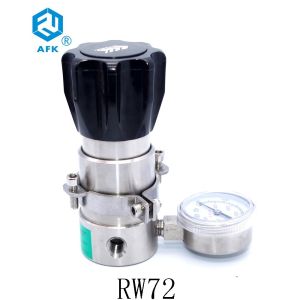

    Piston Hydraulic Back Pressure Regulating Valve , Pneumatic Backflow Pressure Valve

    Ask Lasest Price
    Brand Name : AFK
    Model Number : RW72
    Supply Ability : 10000 Set/Sets per Week
    Price : Negotiable
    • Product Details
    • Company Profile

    Piston Hydraulic Back Pressure Regulating Valve , Pneumatic Backflow Pressure Valve

    Product Description

    RW72 series back pressure regulator is piston-sensed configuration, applicable to high pressure gas or liquid applications.

    Technical parameters
    Maximum Inlet Pressure
    6000psi
    Proof pressure
    1.5times maximum inlet pressure
    Safety test pressure
    1.5 times maximum inlet pressure
    Operating Temperature
    -40°F to 165°F / -40°c to 74°c
    Leakage Rate Against Atmosphere
    2*10-8atm cc/sec he
    Cv value
    0.15

    Material of Parts
    Body

    316L
    Seat
    Vespel
    Piston
    316L
    O-ring
    Viton

    Ordering Information


    Series
    Body material
    Inlet pressure
    G
    Inlet connection
    Outlet connection
    RW72
    A
    D
    G
    02
    02
    A
    L:0-500psig
    W:none
    01:1/4NPT (F)
    01:1/4NPT (F)
    B
    K:0-800psig
    P:PSI/bar
    02:3/8NPT (F)
    02:3/8NPT (F)
    I:10-1500psig
    G:MPa
    04:1/2NPT (F)
    04:1/2NPT (F)
    H:15-2500psig
    05:1/2NPT(M)
    05:1/2NPT(M)
    G:25-4000psig
    12:3/8LOK
    12:3/8LOK
    Q:50-6000psig
    13:1/2LOK
    13:1/2LOK
    M:200-10000psig

    Stainless Steel 1/4NPT 3/8NPT 6000PSI Back Pressure Valve High Pressure
