    SS304 Water Solenoid Valve With Timer 1/2" 3/4" 1" 1-1/4" 1-1/2" Explosion Proof

    Ask Lasest Price
    Brand Name : AFK
    Model Number : 2W-500-50
    Supply Ability : 50000 Piece/Pieces per Week
    Price : Negotiable
    Certification : CE
    • Product Details
    • Company Profile

    SS304 Water Solenoid Valve With Timer 1/2" 3/4" 1" 1-1/4" 1-1/2" Explosion Proof

    1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 220VAC SS304 Water Timer with Solenoid Valve
    *Model: 2W
    *Thread: G, NPT
    *Type: Normally closed
    *Seal: NBR EPDM VITON
    *Medium:Air water oil, the neutral gas liquid
    *Working pressure : (water, air):1~10kgf/cm2 (Oil):0~7kgf/cm2
    *Operating: Direct acting
    *Voltage: AC220V/AC120V/AC110V/AC24V/DC24V/DC12V
    *Materail: Brass and Stainless Steel
    *2-way normally closed solenoid valve, closed when de-energizes,
    open when energized.
    SS304 Water Solenoid Valve With Timer 1/2" 3/4" 1" 1-1/4" 1-1/2" Explosion Proof
    2W series
    Model NO.
    pipe size
    Orifice size
    CV

    Size range

    2W-025-06
    1/8"
    2.5mm
    0.23
    2W-025-08
    1/4"
    4mm
    2W-040-10
    3/8"
    3/8"
    4mm
    0.6
    2W-160-10
    16mm
    4.8
    2W-160-15
    1/2"
    16mm
    4.8
    2W-200-20
    3/4"
    20mm
    7.6
    12W-250-25
    1"
    25mm
    12
    2W-320-32
    1-1/4"
    32mm
    24
    2W-400-40
    401-1/2"
    40mm
    29
    2W-500-50
    2"
    50mm
    48
    Application
    Air, water, oil, the neutral gas liquid
    Operating
    direct acting
    type
    normally closed
    body material
    brass
    viscosity
    (below) 20CST
    Working pressure
    0-10abr (water, air), 0-7bar(oil)
    Voltage
    220VAC, 24VAC, 24VDC, 12VDC, 110VAC,38VAC (allow ±10%)
    Material of seal
    -5-80℃ (Normal)
    -5-120℃
    -5-150℃
    NBR
    EPDM
    Viton

    Main Features

    the direct-acting type diaphragm structure without pressure to open to extend the using field.
    Using the plate diaphragm structure opening and closing with reliable. Then extent product life.
    Can choose plastic type,. Explosion-proof energy-saving.

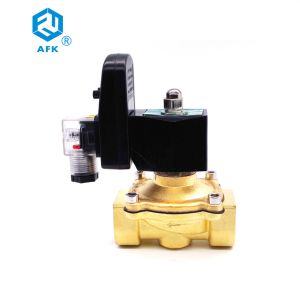

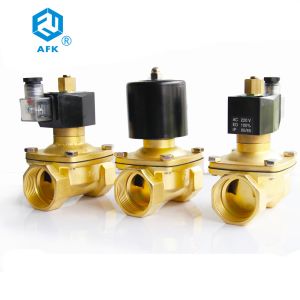

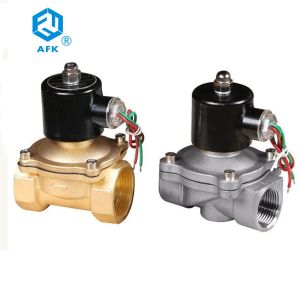

    Detailed Images
    SS304 Water Solenoid Valve With Timer 1/2" 3/4" 1" 1-1/4" 1-1/2" Explosion Proof
    SS304 Water Solenoid Valve With Timer 1/2" 3/4" 1" 1-1/4" 1-1/2" Explosion Proof
