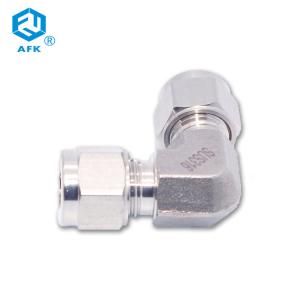

SS316 Double Ferrule Threaded Pipe Fitting Elbow 3000Psi

Ask Lasest Price
Brand Name :	AFK
Model Number :	UE
Certification :	CE
Price :	17USD
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	3000PC
Delivery Time :	1WEEK

Add to Cart

Product Details
Company Profile

SS316 Double Ferrule Threaded Pipe Fitting Elbow 3000Psi

Composition of ferrule type pipe joint

AFK ferrule type pipe joint is composed of front ferrule, rear ferrule, ferrule nut and joint body. Advanced design and strict quality control ensure that the pipe joint is completely sealed under the correct installation.

Advantages of AFK ferrule joint

AFK is constantly improving the leak proof design of its ferrule joints to enable them to be used in thousands of applications, including research, analysis and process detection instruments, bioengineering, oil and gas, electric power, petrochemical, and semiconductor industries. AFK focuses on the following key issues:

Leakage
vibration
thermal shock
industry standard
installation
corrosion

Connects Fractional (Inch) Tube

Part No.	Tube OD T		Dimensions(mm)
	Tube OD T		E Min.	h		H		F	I	L
	inch	mm	E Min.	inch	mm	inch	mm	F	I	L
EU-01	1/16	1.68	1.3	3/8	9.52	5/16	7.92	8.6	14.0	17.8
EU-02	1/8	3.17	2.3	3/8	9.52	7/16	1.11	12.7	15.7	22.4
EU-03	3/16	4.76	3.0	1/2	12.70	1/2	12.70	13.7	17.8	24.4
EU-04	1/4	6.35	4.8	1/2	12.70	9/16	14.28	15.2	19.6	26.9
EU-05	5/16	7.93	6.4	9/16	14.28	5/8	15.87	16.3	21.3	28.7
EU-06	3/8	9.52	7.1	5/8	15.87	11/16	17.46	16.8	23.1	30.5
EU-08	1/2	12.70	10.4	13/16	20.63	7/8	22.22	22.9	25.9	36.1
EU-10	5/8	15.87	12.7	15/16	23.81	1	25.40	24.4	28.7	38.8
EU-12	3/4	19.05	15.7	1-1/16	26.98	1-1/8	28.57	24.4	29.7	39.9
EU-14	7/8	22.22	18.3	1-3/16	30.16	1-1/4	31.75	25.9	34.5	44.7
EU-16	1	25.40	22.4	1-3/8	34.92	1-1/2	38.10	31.2	36.8	49.0
EU-20	1-1/4	31.75	27.7	1-11/16	42.86	1-7/8	47.63	41.1	44.5	66.5
EU-24	1-1/2	38.10	34.0	2	50.80	2-1/4	57.15	50.0	50.8	78.0
EU-32	2	50.80	46.0	2-3/4	69.85	3	76.20	67.6	69.8	107.2

Connects Metric Tube

Part No.	Tube OD T	Dimensions(mm)
	Tube OD T	E Min.	h	H	F	I	L
	mm	E Min.	inch	mm	F	I	L
EU-M03	3	2.4	9.52	11.11	12.9	15.7	22.3
EU-M04	4	2.4	12.70	12.70	13.7	18.8	25.4
EU-M06	6	4.8	12.70	14.28	15.3	19.6	27.0
EU-M08	8	6.4	14.28	15.87	16.2	21.3	28.8
EU-M10	10	7.9	17.46	19.05	17.2	23.9	31.5
EU-M12	12	9.5	20.63	22.22	22.8	25.9	36.0
EU-M14	14	11.1	23.81	25.40	24.4	28.7	38.8
EU-M15	15	11.9	23.81	25.40	24.4	28.7	38.8
EU-M16	16	12.7	23.81	25.40	24.4	28.7	38.8
EU-M18	18	15.1	26.98	30.16	24.4	29.7	39.8
EU-M20	20	15.9	34.92	31.75	26.0	34.5	44.6
EU-M22	22	18.3	34.92	31.75	26.0	34.5	44.6
EU-M25	25	21.8	34.92	38.10	31.3	36.8	49.1
EU-M28	28	21.8	42.86	47.63	36.3	43.2	64.0
EU-M30	30	26.2	47.63	50.80	39.6	48.3	69.9
EU-M32	32	28.6	47.63	50.80	42.0	49.3	72.3
EU-M38	38	33.7	55.56	57.15	49.4	56.4	84.0

This size is for reference only , subject to possinle changes in the actual product (without notice).E refers to the smallest opening .F and L are standard hand-tightened dimensions.
